Product Details:
Payment & Shipping Terms:
|
| Port Size: | 2"~24" | Design: | API 6D |
|---|---|---|---|
| Driven By: | Lever, Pneumatic, Electric, Hydraulic | Applications: | Natural Gas, Oil |
| Bore Hole: | Reduced Bore, Full Bore | Working Temperature: | -25~-180℃ |
| High Light: | ss ball valve flange type,flanged end ball valve |
||

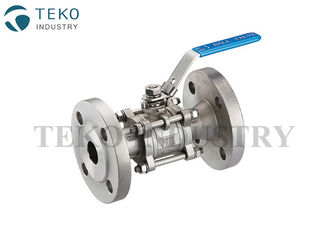

Flanged End WCB body Manual Operation Soft Seated Ball Valve WIth RPTFE Seat
Descriptions
The flanged ball valve is offered in 150#, 300# or 600# configurations. Made from high quality A351 CF8M material, ISO 5211 direct mount, mounting pad and a steam rating of 150PSI WSP. The ball valve is our industrial grade/high pressure flanged ball valve and is a standard in any oil, water or gas environment. Both versions are offered in sizes: 1/2", 3/4", 1" 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6" and 8".

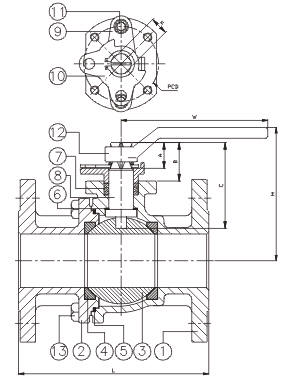

Material List
| No. | Parts Name | Material |
| 1 | Body | ASTM A216 Gr.WCB |
| 2 | Seat Seal | PTFE |
| 3 | Ball | SS 304 |
| 4 | Stem | ASTM A182 F6a |
| 5 | Gasket | PTFE |
| 6 | Spring | SS 304 |
| 7 | Steel Ball | SS 304 |
| 8 | Packing | PTFE |
| 9 | Packing Bushing | ASTM A276 410 |
| 10 | Nut | ASTM A193 Gr.B7 |
| 11 | Retaining ring | SS 304 |
| 12 | Lever | ASTM A216 Gr.WCB |
| 13 | Gauge Block | AISI 1010Zinc-coated |
| 14 | Packing Gland | ASTM A216 Gr.WCB |
| 15 | Body Gasket | PTFE |
| 16 | Bonnet | ASTM A216 Gr.WCB |
| 17 | Stud | ASTM A193 Gr.B7 |
| 18 | Nut | ASTM A194 Gr.2H |
Dimensions
Unit:mm
| DN | L | L | H | W | PCD | M | A | B | C | Weight (kg) | Weight (kg) |
| (Class 150) | (Class300) | (Class 150) | (Class300) | ||||||||
| 15 | 108 | 140 | 73 | 130 | 42 | 11 | 17.3 | 24.3 | 50 | 1.7 | 2.5 |
| 20 | 117 | 153 | 76 | 130 | 42 | 11 | 17.3 | 25.5 | 50 | 2 | 3.5 |
| 25 | 127 | 165 | 86 | 160 | 50 | 14 | 23.1 | 30.8 | 63.5 | 3 | 4.7 |
| 32 | 140 | - | 91 | 160 | 50 | 14 | 20.5 | 31 | 63.5 | 3.8 | - |
| 40 | 165 | 190 | 119 | 205 | 70 | 17 | 28.4 | 41.5 | 81 | 6 | 9.3 |
| 50 | 178 | 216 | 127 | 205 | 70 | 17 | 28.4 | 41 | 81 | 8.5 | 11.7 |
| 65 | 190 | 241 | 136 | 325 | 70 | 17 | 28.4 | 42.5 | 88 | 13.7 | 13.6 |
| 80 | 203 | 282 | 164 | 325 | 102 | 22 | 39.3 | 56 | 112 | 18.2 | 26.3 |
| 100 | 229 | 305 | 178 | 325 | 102 | 22 | 38.1 | 56 | 112 | 28 | 39.3 |
Unit:inch
| NPS | L | L | H | W | PCD | M | A | B | C | Weight (kg) | Weight (kg) |
| (Clas 150) | (Class300) | (Class 150) | (Class300) | ||||||||
| 1/2" | 4.25 | 5.51 | 2.87 | 5.12 | 1.65 | 0.43 | 0.68 | 1 | 1.97 | 3.8 | 5.4 |
| 3/4" | 4.61 | 6.02 | 2.99 | 5.12 | 1.65 | 0.43 | 0.68 | 1 | 1.97 | 4.5 | 7.6 |
| 1" | 5 | 6.5 | 3.39 | 6.3 | 1.97 | 0.55 | 0.91 | 1.21 | 2.5 | 6.6 | 10.4 |
| 1-1/4" | 5.51 | - | 3.58 | 6.3 | 1.97 | 0.55 | 0.81 | 1.2 | 2.5 | 8.3 | - |
| 1-1/2" | 6.5 | 7.48 | 4.69 | 8.07 | 2.76 | 0.67 | 1.12 | 1.63 | 3.19 | 13.3 | 20.5 |
| 2" | 7.01 | 8.5 | 5 | 8.07 | 2.76 | 0.67 | 1.12 | 1.61 | 3.19 | 18.7 | 25.8 |
| 2-1/2" | 7.48 | 9.49 | 5.35 | 12.8 | 2.76 | 0.67 | 1.12 | 1.67 | 3.46 | 30.1 | 29.9 |
| 3" | 7.99 | 11.1 | 6.46 | 12.8 | 4.02 | 0.87 | 1.55 | 2.2 | 4.41 | 40.2 | 57.9 |
| 4" | 9.02 | 12.01 | 7.01 | 12.8 | 4.02 | 0.87 | 1.5 | 2.2 | 4.41 | 61.7 | 86.6 |
