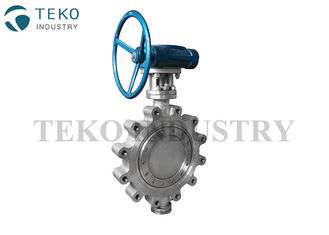

Carbon Steel High Temp Butterfly Valve With Multilayer Metal Sealing Structure

Large Image : Carbon Steel High Temp Butterfly Valve With Multilayer Metal Sealing Structure

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D373H,D343H

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	20 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Operation:	Lever, Gear, Pneumatic	Working Pressure:	Class150-600Lb
End:	Wafer, Lug, Double Flange	Size Rating:	2" To 48"
Body Material:	WCB, CF8, CF3 Etc	Stem Material:	SS410
High Light:	triple offset butterfly valve , double eccentric butterfly valve

Carbon Steel Worm Gear Operation Tripple Offset Butterfly Valve For High Temp Service

Product information

Our Triple offset butterfly valve has a unique triple-eccentric multilayer metal sealing structure. It is mainly used for regulating flow rate and cutting off or connecting fluid for different mediums in the pipeline in such sectors including petroleum, natural gas, chemical industry, metallurgy, power plant, water supply and drainage, etc.

Applicable norms

Design & manufacture: ASME B16.34

Flange connection: ANSI B16.5, ASME B16.47

Structural length: API609-2004

Check and Test: API 598

Drawing & Dimensions:

Carbon Steel High Temp Butterfly Valve With Multilayer Metal Sealing Structure 0

Class 150Lb

DN	L	H1	H2	Do
50	108	305	115	160
65	112	315	125	160
80	114	330	135	160
100	127	360	140	160
125	140	450	170	280
150	140	475	175	280
200	152	525	240	250
250	165	570	270	250
300	178	630	315	320
350	190	675	345	350
400	216	720	395	350
