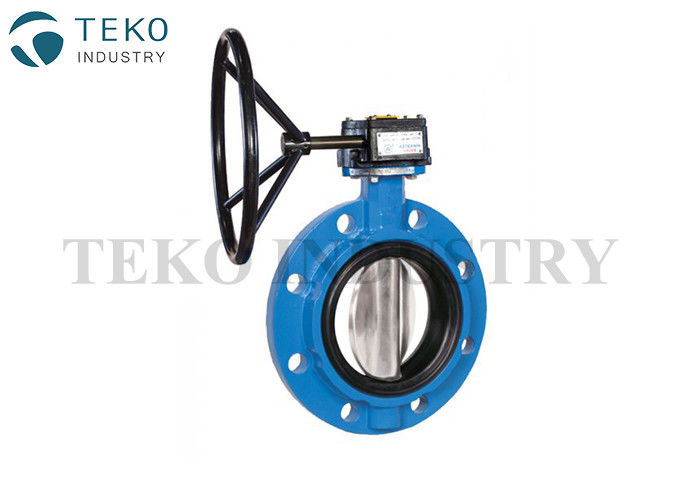

Mono Flange API609 Butterfly Valve , Ductile Iron Body Concentric 12 Inch Butterfly Valve

Large Image : Mono Flange API609 Butterfly Valve , Ductile Iron Body Concentric 12 Inch Butterfly Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71F

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	10 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Surface Treatment:	Epoxy Coating	End Connection:	Mono Flange
Manufacture:	API 609	Size:	DN2" Thru 12"
Application:	Water, Oil, Air Etc	Seat Material:	EPDM, Hypalon, Buna-A Etc
High Light:	rubber seated butterfly valve , centerline butterfly valves

Mono Flange Ductile Iron Body Concentric API609 Butterfly Valve For Easy Installation

Description

Mono Flange Butterfly Valve with Centric Disc and Bonded Liner. 100% bi-directional bubble tight shut off.
Applicable for all kinds of industries, especially shipbuilding, offshore, petrochemical, heavy industry, water treatment and civil engineering.

Features

* Overall design generally in accordance to BS En 593
* Face to face dimension in accordance to EN 558 table I, Series 20 (Series 16 from DN700 and above)
* On request available with face to face dimensions in acc. to EN 588 table I, Series 16 as eccentric *type MONO/S61
* Top flange and shaft end in accordance to ISO 5211
* Working pressure from 0.1 Bar absolute up to 16 Bar (Test Pressure 17.6 Bar)
* Working pressure up to 25 Bar (Test Pressure 27.5 Bar) on request
* Suitable as end of line service valve
* DN50 – DN2200
* Mounting between flanges to DIN PN10, DIN PN16 or ASME Class 150
* Other type of connection on request

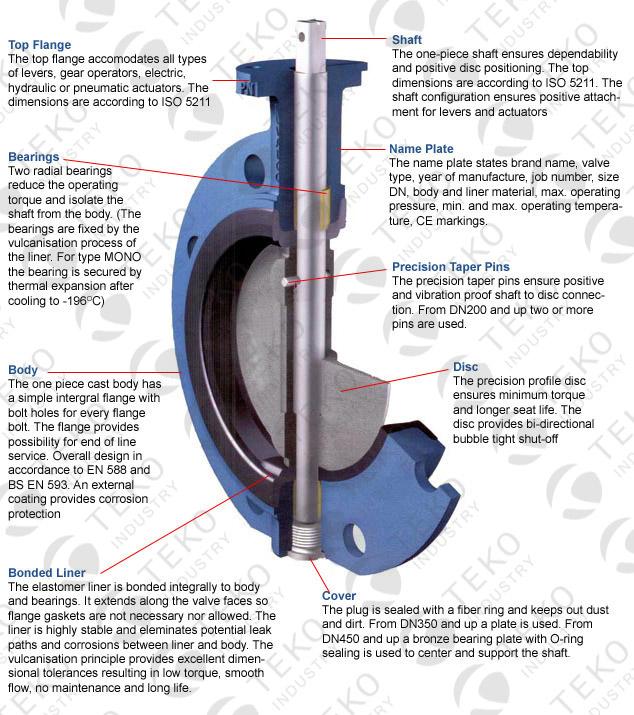

Components Features

Mono Flange API609 Butterfly Valve , Ductile Iron Body Concentric 12 Inch Butterfly Valve 0

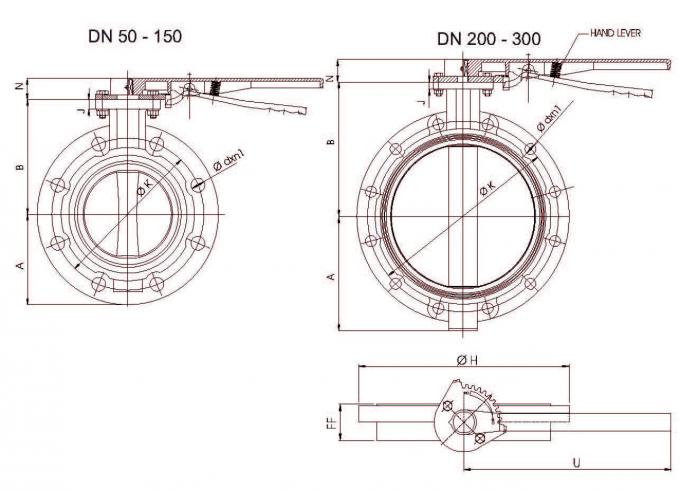

Dimensions

Mono Flange API609 Butterfly Valve , Ductile Iron Body Concentric 12 Inch Butterfly Valve 1

DN	A	B	FF	U	φH	K (PN10)	K (PN16)
DN	A	B	FF	U	φH	K (PN10)	K (PN16)
50	82	108	43	220	165	125	125
65	93	127	46	220	185	145	145
80	102	132	46	260	200	160	160
100	117	155	52	260	220	180	180
125	127	160	56	260	250	210	210
150	142	185	56	350	285	240	240
200	170	213	60	350	340	295	295
250	212	245	68	400	395	350	355
300	240	282	78	400	445	400	410
