PTFE Seated API609 Butterfly Valve Corrosion Resistant Split Body For Chemical Liquid

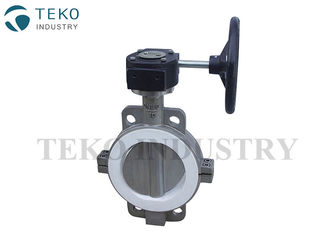

Large Image : PTFE Seated API609 Butterfly Valve Corrosion Resistant Split Body For Chemical Liquid

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71F

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	10 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Surface Treatment:	Epoxy Coating	End Connection:	Wafer, Lug
Manufacture:	API 609	Size:	DN2" Thru 8"
Application:	Corrsive Liquid	Seat Material:	PTFE
High Light:	rubber seated butterfly valve , centerline butterfly valves

PTFE Seated Corrosion Resistant Split Body API609 Butterfly Valve For Chemical Liquid

PTFE seated butterfly valve is a split body boot seated butterfly valve designed for bubble tight service o corrosive applications. The PTFE lined seat and stainless steel disc/stem provide superior corrosion resistance, but with the economy of a cast iron body.

Featrues

Rated to 150 PSI
Designed for 125/150 Lbs Flanges
Split Body for Easy Maintenance
Heavy-duty Square Groove Boot Seat
Lug Bodies for Dead-End Service, Rated to 75 PSI Without Downstream Flange*
Vacuum Rated to 29.92"Hg
Shell Tested to 150% & Seat Tested to 110% of Maximum Working Pressure
Two Layer Epoxy/Polyurethane Body Coating
Low Maintenance Design
Sizes 2" to 12"

Details

Type	Wafer, Lugged
Face to face	API609, BS EN 558, DIN3202
Flange	ISO 5752
	DIN, BS, UNI, ISO, ANSI,
	AS JIS
Mounting Flange	ISO 5211

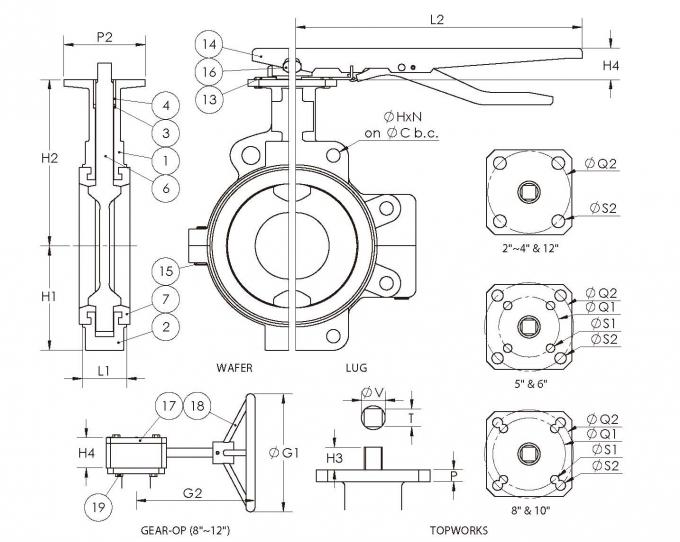

Standard Material For Main Parts

PTFE Seated API609 Butterfly Valve Corrosion Resistant Split Body For Chemical Liquid 0

No.	Description	Material	Qty	Remarks
1	Upper Body	ASTM A126 Gr. B CAST IRON	1
2	Lower Body	ASTM A126 Gr. B CAST IRON	1
3	Stem Seal	NITRILE	1
4	Stem Bushing	POLYACETAL	1
6	Disc / Stem	ASTM A351 CF8M / SS316 SH STAINLESS STEEL	1
7	Seat	PTFE LINED EPDM	1
8	Body Locating Pins	CARBON STEEL En8	2	Zinc Plated, Not Shown
13	Stop Plate	CARBON STEEL ZINC PLATED	1	Zinc Plated
14	Lever	CARBON STEEL	1	2"~6", Powder Coated
15	Body Screw	304SS STAINLESS STEEL	2
16	Lever Bolt	CARBON STEEL	1	Zinc Plated
17	Gear Operator	CAST IRON	1	8"~12"
18	Handwheel	CARBON STEEL	1	8"~12", Fabricated
19	Gear Mtg Bolt	CARBON STEEL	4	8"~12", Zinc Plated
