Taper Pin Shaft Stainless Steel Butterfly Valve Backed Seat For Corrosive Liquid

Large Image : Taper Pin Shaft Stainless Steel Butterfly Valve Backed Seat For Corrosive Liquid

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71X,D371X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	10 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

End Standard:	ANSI 125/150Lb	Feature:	Bi-drection Seal
Service:	Corrosive Liquid	Body Style:	Lug, Wafer Etc
Design:	API 609	Size:	DN2" Thru 48"
High Light:	rubber seated butterfly valve , fire protection butterfly valves

Stainless Steel Taper Pin Shaft API609 Standard Butterfly Valve With Backed Seat

Specifications

MSS Specifications	MSS SP-25, MSS SP-67
Material	Ductile Iron
Maximum Pressure	200 psi
Pressure Class	200#
Schedule Class	200 psi
Valve Body Style	Lug
Valve Operator	Locking Lever Handle
Valve Seat Material	Buna-N
Valve Size	2in - 60in

DESCRIPTION

Buna-N molded-in seat liner
Geometric drive
Lug style
Max temperature rating 180°F
Not recommended for steam service
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Stainless steel stem with copper bushings
Valve pressure rating 200 psi

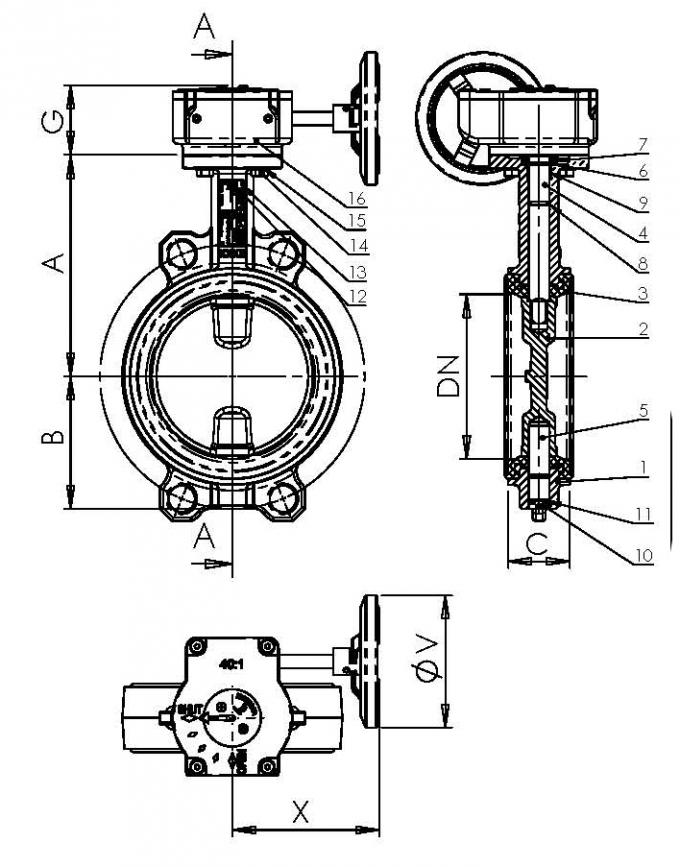

Taper Pin Shaft Stainless Steel Butterfly Valve Backed Seat For Corrosive Liquid 0

Item	Description	Material
1	Stem	Stainless Steel ASTM A582 416
2	Collar Bushing	Brass
3	Stem Seal	Buna-N Rubber Nitrile
4	Body seat	Buna-N Rubber Nitrile
5	Nameplate	Aluminum
6	Upper Bushing	Copper
7	Liner	Buna-N Rubber Nitrile
8	Disc	Aluminum Bronze
9	Lower Bushing	Copper
10	Body Wafer	A351 CF8
11	Body Lug	A351 CF8
