SS Disc API609 Butterfly Valve , Fully Lugged Butterfly Valve With Bi - Directional Seal

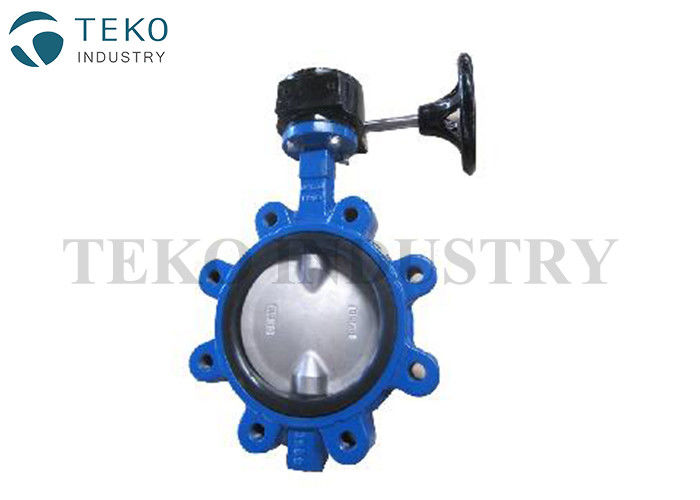

Large Image : SS Disc API609 Butterfly Valve , Fully Lugged Butterfly Valve With Bi - Directional Seal

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71X,D371X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	10 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Body Material:	CF8, CF8M	Feature:	Bi-drection Seal
Installation:	Any Direction	Body Styel:	Full Lug
Face To Face:	API 609	Applications:	Water, Oil, Air Etc.
High Light:	rubber seated butterfly valve , centerline butterfly valves

Full Lug Type 2 Pieces Stem SS Disc API609 Butterfly Valve With Bi-directional Seal

Full lug body cast iron butterfly valve, in stainless steel disc, with two piece stem design, for wide applications such as water, wastewater, gas air, Bi-directional seal bubble tight shutoff, with 10 position lock handle for throttling.

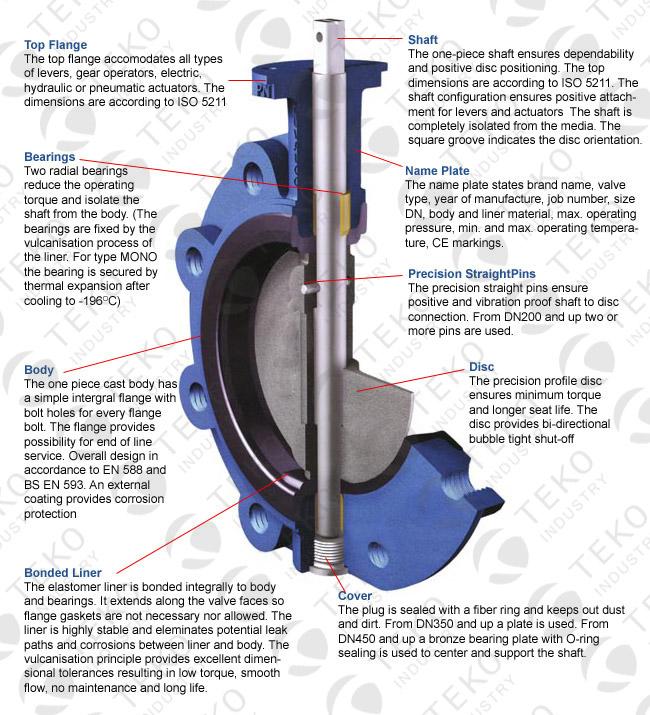

Design Benefits

Wafer /lug body available.
Rated pressure 200 psi for size 2”-12”; 150 psi for 14”-16”
Buna Seat up to 80 ℃; EPDM up to 100℃.
Stainless steel stem
Disc: ductile iron-nickel plated; aluminum bronze or stainless steel
Phenolic backed cartridge seat
24”, 36”, 48”, 60” & 72” extension
Fusion bonded epoxy coating
MSS SP-67/ API609
Installs between ANSI class125 /150 flanged
Top flange: ISO5211

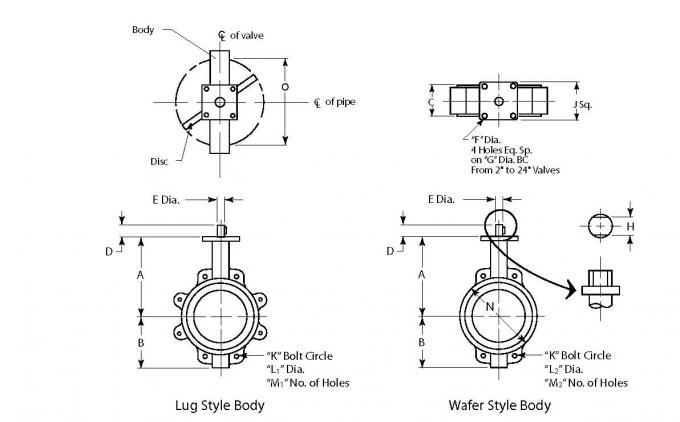

Dimensions

SS Disc API609 Butterfly Valve , Fully Lugged Butterfly Valve With Bi - Directional Seal 0

Size	A	B	C	D	E	F	G	H	J	K	L1	L2	M1	N	Weight
50	161.9	81	47.7	31.8	12.7	9.53	70	10	69.85	120.65	5/8-11	17.46	4	101.6	4.08
65	174.6	88.9	50.8	31.8	12.7	9.53	70	10	69.85	139.7	5/8-11	17.46	4	120.65	5.9
80	181	95.3	50.8	31.8	12.7	9.53	70	10	69.85	152.4	5/8-11	17.46	4	127	6.35
100	200	114.3	54	31.8	15.9	9.53	70	12	69.85	190.5	5/8-11	17.46	4	158.75	8.62
125	212.8	127	60.4	31.8	19.1	9.53	70	14	69.85	215.9	3/4-10	20.64	4	190.5	9.98
150	225.5	139.7	60.4	31.8	19.5	9.53	70	17	69.85	241.3	3/4-10	20.64	4	212.73	14.06
200	260.4	174.6	63.5	44.5	22.2	11.11	102	17	95.33	298.45	3/4-10	20.64	4	269.88	22.23
250	292.1	203.2	69.9	44.5	28.6	11.11	102	22	95.33	361.95	7/8-9	23.81	4	327.03	28.12
300	336.6	244.5	79.4	44.5	31.75	11.11	102	24	95.33	431.8	7/8-9	23.81	4	403.23	47.63
350	368.3	279	79.4	44.5	31.75	11.11	102	24	95.33		1-8	26.99	4	447.68	80.74
