Product Details:
Payment & Shipping Terms:
|
| Manufacture: | API 609 | Stem Materail: | SS410, F304 Or F316 |
|---|---|---|---|
| Installation: | Any Direction | Operation: | Worm Gear |
| Face To Face: | API 609 | Service: | Water, Oil, Air Etc. |
| High Light: | rubber seated butterfly valve,centerline butterfly valves |
||

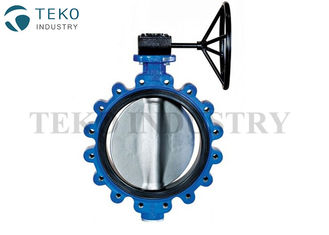

Gear Operation Cast Iron JIS 10K Drilled API609 Butterfly Valve For Water Prifier
Introduction
DN100 to DN 1200, Face to face after EN558-1/13, compatible with flange PN10 or PN16, top flange after ISO 5211, with hand lever from DN200 with Worm Gear. Our resilient butterfly valve are reliable, maintenance-free shutoff and control valves with gas tight seal. It can be used as a leak-free and corrosion resistant in various applications under demanding operating conditions.
For a butterfly valve, only the seat and disc will come into contact with the medium. We pay more attention to the material selection for the disc and seat lining to ensure that a suitable corrosive resistant combination can be chosen for almost any application.
Typical Applications
Chemicals, Oil and Gas, Power, Water and Waste Water, Paints and Colors, Pulp and Paper, Food and Beverage

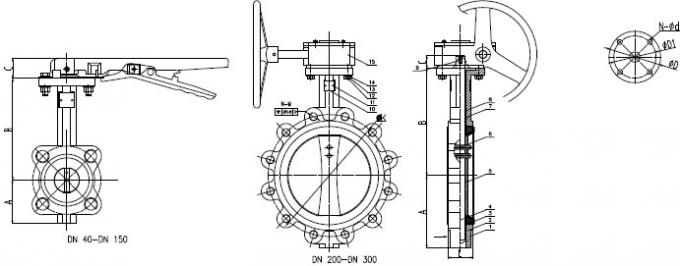

| SIZE | A | B | C | L | ANSI 150B | JIS 10K | ISO 5211 | Top Flange | ||||||
| mm | in | øK | N-M | øK | N-M | øD | øD1 | N-ød | ||||||
| 40 | 1.5" | 70 | 164 | 32 | 33 | 98.5 | 4-1/2"-13UNC-2B | 105 | 4-M16 | 65 | 50 | 4-ø8 | F05 | |
| 50 | 2" | 80 | 169 | 32 | 43 | 120.6 | 4-5/8"-11UNC-2B | 120 | 4-M16 | 65 | 50 | 4-ø8 | F05 | |
| 65 | 2 1/2" | 89 | 176 | 32 | 46 | 139.7 | 4-5/8"-11UNC-2B | 140 | 4-M16 | 65 | 50 | 4-ø8 | F05 | |
| 80 | 3" | 95 | 183 | 32 | 46 | 152.4 | 4-5/8"-11UNC-2B | 150 | 8-M16 | 65 | 50 | 4-ø8 | F05 | |
| 100 | 4" | 114 | 201 | 32 | 52 | 190.5 | 8-5/8"-11UNC-2B | 175 | 8-M16 | 90 | 70 | 4-ø10 | F07 | |
| 125 | 5" | 127 | 214 | 32 | 56 | 215.9 | 8-3/4"-10UNC-2B | 210 | 8-M20 | 90 | 70 | 4-ø10 | F07 | |
| 150 | 6" | 139 | 229 | 32 | 56 | 241.3 | 8-3/4"-10UNC-2B | 240 | 8-M20 | 90 | 70 | 4-ø10 | F07 | |
| 200 | 8" | 175 | 257 | 45 | 60 | 298.4 | 8-3/4"-10UNC-2B | 290 | 12-M20 | 125 | 102 | 4-ø12 | F10 | |
| 250 | 10" | 203 | 280 | 45 | 68 | 361.9 | 12-7/8"-9UNC-2B | 355 | 12-M22 | 125 | 102 | 4-ø12 | F10 | |
| 300 | 12" | 242 | 327 | 45 | 78 | 431.8 | 12-7/8"-9UNC-2B | 400 | 16-M22 | 125 | 102 | 4-ø12 | F10 | |
