High Pressure Eccentric Butterfly Valve , Worm Gear Operation Wafer Butterfly Valve

Large Image : High Pressure Eccentric Butterfly Valve , Worm Gear Operation Wafer Butterfly Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D372H

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	40 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Operation:	Worm Gear	Working Pressure:	Class150/300/600/900Lb
Body Configuration:	Wafer, Lug, Double Flange	Size Rating:	2" To 60"
Seat Materail:	RPTFE, PTFE, Monel	Regulating Control:	Yes
High Light:	double offset butterfly valve , double eccentric butterfly valve

CL900 High Pressure Worm Gear Operation Two Eccentric Butterfly Valve For Power Plant

Product Review

TKEO’s butterfly valve provide an economical solution to flow control with the bi-directional seal service. The major feature is low torque, no wearing, exchangeable seat, easy maintenance. Both wafer and lug body are offered for options.

Production Specifications

Series	High Performance
Brand Name	TEKO
Item	Manual Butterfly Valve
Type	Wafer/Lug
Series	High Performance, Tow offset
Nominal Size	2-60 in
End Style	Flanged
Pressure Class	ANSI Class 150-900
Pressure Rating	362-2175 psig
Media	Saturated Steam
Body Material	Carbon Steel
Material Specifications	ASTM A216 Grade WCB
Disc Material	316 Stainless steel
Stem Material	17-4 PH Stainless Steel
Seat Material	RPTFE
Softgoods Material	PTFE Stem Seal
Operator Type	Gear Handle
Temperature Rating	230 degC Seat
Standard/Approvals	ANSI B16.5
Application	Chemical and Petrochemical, Power Generation Plants, Ship Building Industries, Fiber Industries, Food Industries, Desalination Industries and Oil Refinery Industries

Features

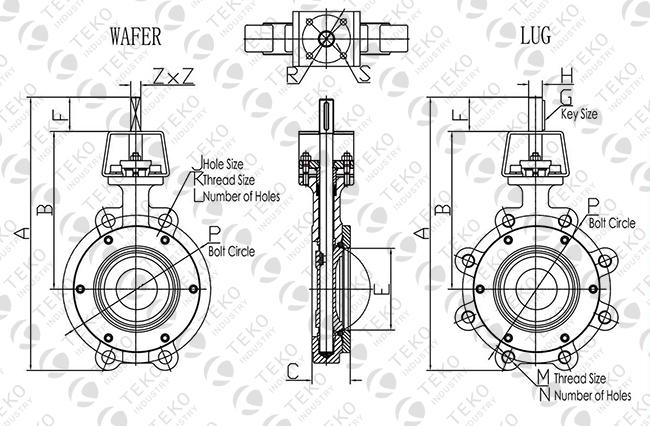

High Pressure Eccentric Butterfly Valve , Worm Gear Operation Wafer Butterfly Valve 0

Low torque, double eccentric disc makes it leave the seat as soon as the valve opens, minimize the friction and lower the torque. The cost is very competitive when using actuated such as pneumatic and Electric actuators.
Unique seat design, the sea t is 100% exchangeable for all the valve of same size and seal type, no need to change the body or other components. Removable seat retainer is the only step to replace a new sea ring, unnecessary to disassemble the disc and stem.
As the above features, it is very easy to maintenance and comparing to total cost, it is very cost efficiency.
With double seat design, it is strictly in accordance with API 607 specification. Bi-directional soft seal design for zero-leakage in normal operation and a metal-to-metal seal after fire
