Quick Action Full Bore Air Operated Pinch Valve Aluminum Body For Food Process

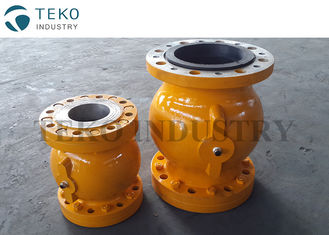

Large Image : Quick Action Full Bore Air Operated Pinch Valve Aluminum Body For Food Process

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	GJ41X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Operation:	Air Operated	End Connection:	Flange End
Port:	Full Port	Body Material:	Aluminum
Flange End:	DIN 10 /ANSI 150	Surface Treatment:	Powder Coating
High Light:	manual pinch valve , electric pinch valve

Quick Action Full Bore Air Operated Slurry Pinch Valve For Food Process

Our air-actuated pinch valve offers a uique, cost-effective solutions to flow control problems. The Actuation of air operated pinch valve is accomplished by air or hydraulic pressure placed on the sleeve. It eliminates costly actuators and save a lot of money. Adding air pressure within tehe annular space between the body and the sleeve can open, throttle or close the valve.

Features

Closes drop-tight on solids

Body cavity acts as built-in actuator

No cavities or dead spots to bind valve operation

Full-port design

Not affected by harsh external environments

No packing to replace or maintain

Cost effective and maintenance free

Dimensions

Quick Action Full Bore Air Operated Pinch Valve Aluminum Body For Food Process 0

Size (mm)	L	H	Dg	D1	D	Z - Ø	α	G
DN40	150	50	40	110	150	4-18	45°	1/4
DN50	180	60	50	125	165	4-18	45°	1/4
DN65	180	75	65	145	185	4-18	45°	1/4
DN80	225	90	80	160	200	8-18	22.5°	1/4
DN100	280	105	100	180	220	8-18	22.5°	1/4
DN125	345	130	125	210	250	8-18	22.5°	1/4
DN150	415	155	150	240	285	8-22	22.5°	1/4
DN200	555	200	200	295	340	8-22	22.5°	3/8
DN250	650	260	250	350	395	12-22	15°	1/2
DN300	800	310	300	400	445	12-22	15°	1/2
