Product Details:
Payment & Shipping Terms:
|
| Features: | Heavey Duty | Manufactuer Standard: | Mill Standard |
|---|---|---|---|
| End Connection: | Wafer, Flanged | Seal Type: | Natural Rubber |
| Port Size: | 2"-24" | Operation: | Manual, Electric, And Pneumatic |
| High Light: | 4 inch knife valve,cast steel valves |
||

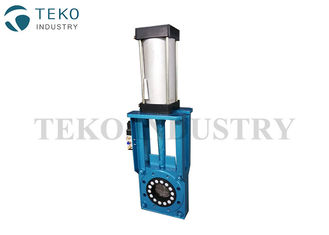

Heavy Duty Fiber Corded Seat Slurry Use Knife Gate Valve For Sand And Gravel
Due to its double-seated design, TEKO Slurry knife gate valve offers a bidirectional shut-off. These seats or rubber sleeves are provided with an internal fiber cord for heavy duty applications. While the valve remains in an open position the two rubber sleeves made of wear-resistant material are in contact with each other providing a sleeve pattern, thus preventing any contact between the fluid and the body of the valve.
Our Knife Valves are designed to be installed between flanges or at the end of a line. Wafer/flange end is drilled acc. to ANSI 150 or DIN PN10. It is provided with a knife type gate in stainless steel which is polished on both sides with round-shaped edges for longer lasting of seats and packing elements.
Specifications
| DESIGN STANDARD | DIN / ANSI |
| PRESSURE | DN50 to DN400: 10 bar |
| DN450 to DN600: 6 bar | |
| SIZE | DN50/2'' to DN600/24'' |
| MATERIALS | Body: GGG40 |
| Knife: AISI304 / AISI316 | |
| Packing: Synth+PTFE, Graphite, o-ring | |
| SEAT | Abrasion-resistant Natural Rubber (NR) Sleeves |
| OPERATION TYPE | Handwheel, Lever, Bevel Gear, Pneumatic, Hydraulic and Electric actuator. |
Features
* Compact structure, light weight
* Different sleeve material for severe working conditions
* For slurry or dry material, suitable for medium with large particles
* Unobstructed flow eliminates turbulence, minimizes pressure drop across the valve
* No metal parts in contact with the medium
* 100% isolation, bubble-tight shut-off results in absolutely zero leakage
* Double-seated design provides bi-directional flow and shut-off
* No groove for dust collection and clogging
* Multi actuators for choosing
* Replaceable sleeve, low maintenance cost

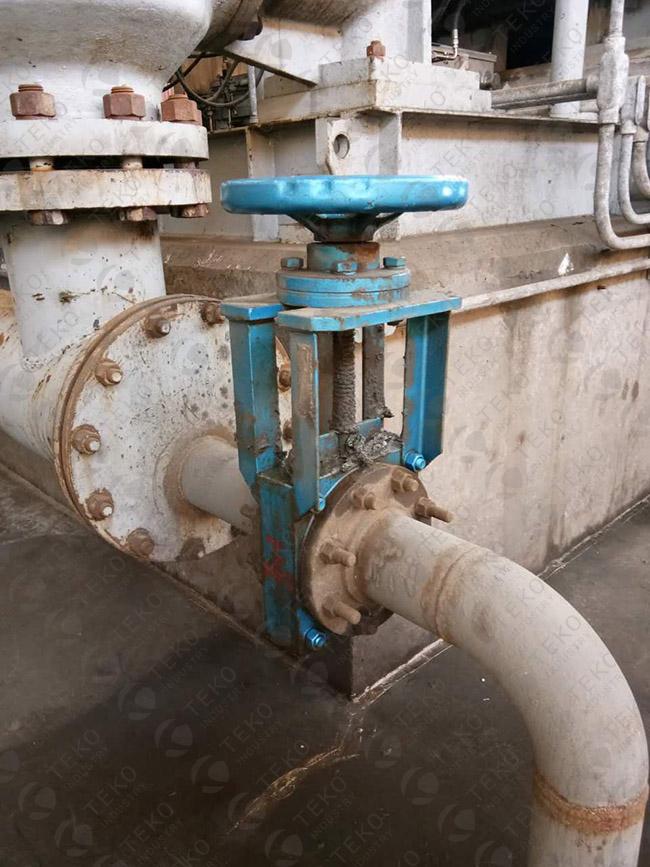

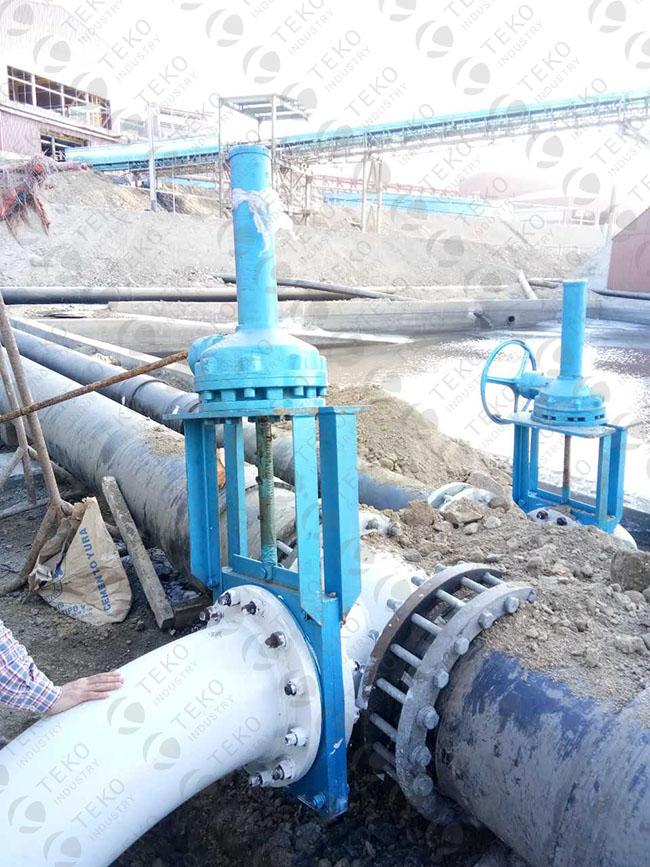

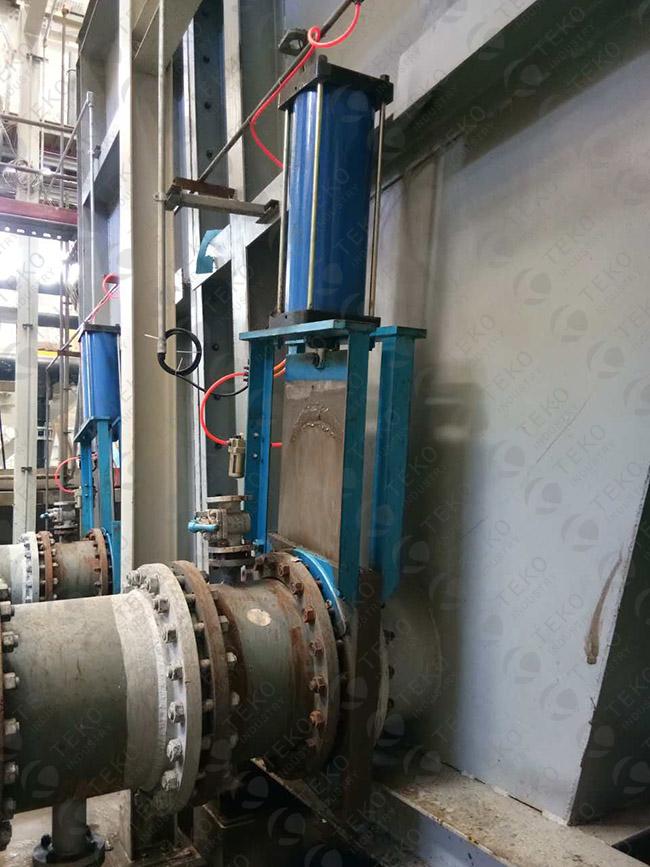

TEKO Slurry Knife Gate Valve Used In Waste water
