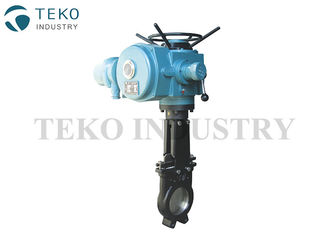

CF8 CF8M Knife Valve , Motorized Electric Actuator Valve For Food Processing

Large Image : CF8 CF8M Knife Valve , Motorized Electric Actuator Valve For Food Processing

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	PZ973X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	20 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Manufactuer:	MSS SP-81	Material:	Stainless Steel
Seal Type:	Uni-direcitonal, Bi-directional	Operation:	Motorized
Connection End:	Wafer, Lug	Treatment:	Food Grade
High Light:	pneumatic knife valve , 4 inch knife valve

Motorized Electric Actuated CF8, CF8M Knife Valve for Food Processing

TEKO Electric Knife Gate Valve-Stainless Steel- Electric actuator-EPDM Sealing-AUMA Brand

Electric Actuators-Multi-turn electric actuators are available in many brands, voltages, enclosure ratings, and control schemes. Some imported brands are available such as AUMA, Rotork, EIM and so on.

Uni-directional tightness: specific mounting position -
Electric actuator AUMA 220V & 3-380V -
IP67 -
Temperature range: -25°C/+80°C -
Safety manual gear -
Heating resistance 20W -
S2 duty service -
15 mn -
Torque limiter -
Painted steel side covers -

Max. Working Pressure

Size	Pressure
DN50-DN250	10 kg/cm2
DN300-DN450	7 kg/cm2
DN500-DN600	4 kg/cm2
DN700-DN900	2 kg/cm2
DN1000-DN1200	1 kg/cm2

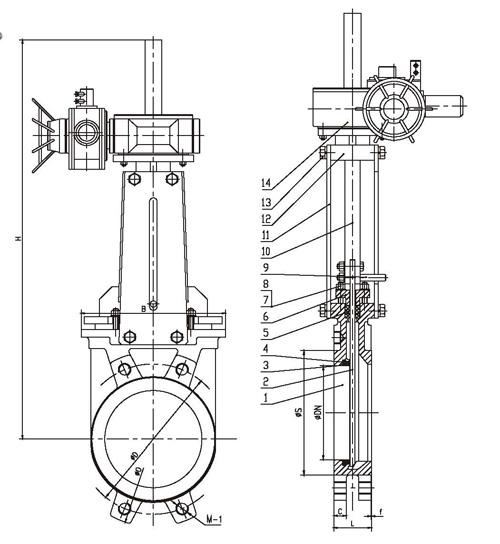

Dimension

DN	L	O	D	S	C	f	M-1	B	H
50	40	165	125	95	16	2	4-M16	136	640
65	40	185	145	110	16	2	4-M16	151	670
80	50	200	160	127	17	2	8-M16	170	695
100	50	220	180	148	17	2	8-M16	190	755
125	50	250	210	174	17	2	8-M16	212	810
150	60	285	240	199	21	2	8-M20	230	875
200	60	340	295	250	21	2	8-M20	286	1010
250	70	395	350	308	24	2	12-M20	338	1025
300	70	445	400	360	24	2	12-M20	388	1280
350	96	505	460	416	33	2	16-M20	460	1410
400	100	565	515	466	35	2	16-M24	520	1560
450	106	615	565	525	36	2	20-M24	585	1730
500	110	670	620	584	37	2	20-M24	635	1850
600	110	780	725	664	37	2	20-M27	720	2125
700	110	895	840	1070	38	2	24-M27	807	2480
800	110	1015	950	955	38	2	24-M30	922	2860
900	110	1115	1050	870	38	2	28-M30	1030	3090
1000	110	1230	1160	760	38	2	24-M30	1140	3315
