Soft Seal Unidirectional Valve Light Weight EPDM PTFE Seal For Sewage Utilities

Large Image : Soft Seal Unidirectional Valve Light Weight EPDM PTFE Seal For Sewage Utilities

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	PZ73X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	20 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Uni-directional Seal	Feature:	Renewable Seat
Design:	MSS SP-81	Type:	Knife Shape Valve
Connection:	Wafer, Lug	Operation:	Manual
High Light:	pneumatic knife valve , cast steel valves

Soft Seal Uni-directional EPDM PTFE Seal Knife Valve For Sewage Utilities

TEKO knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:

Pulp and Paper
Power plants
Wastewater treatment plants
Chemical plants
Food and Beverage
Bulk handling
Mining

Sizes:

DN 50 to DN 1200 (larger diameters on request)

Max. Working Pressure

Size	Pressure
DN50-DN250	10 kg/cm2
DN300-DN450	7 kg/cm2
DN500-DN600	4 kg/cm2
DN700-DN900	2 kg/cm2
DN1000-DN1200	1 kg/cm2

Standard flange connection:

EN1092 PN10 and ANSI B16.5 (class 150)

Note: other flange connections (on request):

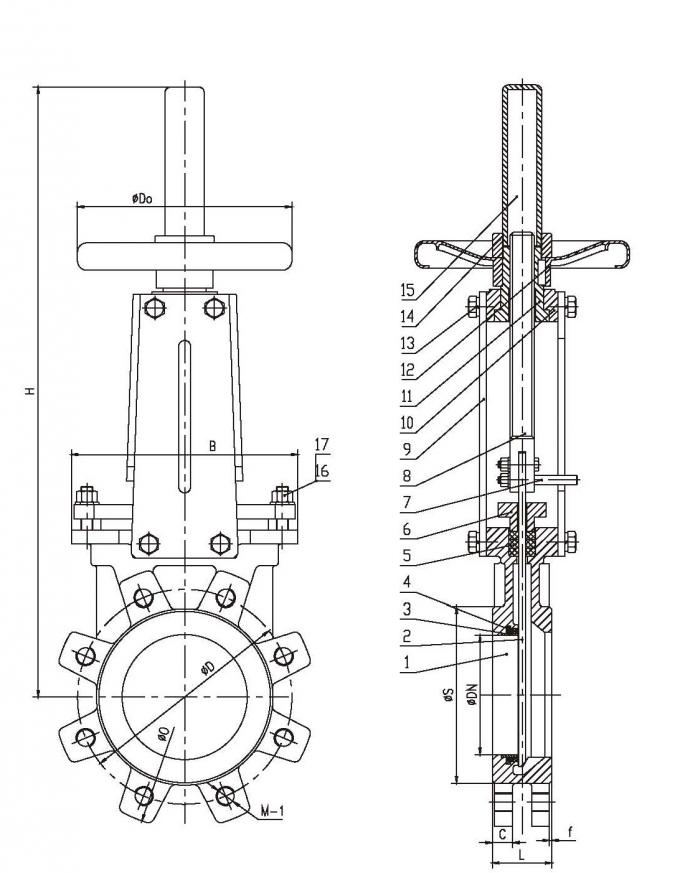

Dimension & Drawing

Soft Seal Unidirectional Valve Light Weight EPDM PTFE Seal For Sewage Utilities 0

DN	L	O	D	S	C	f	M-1	B	H	Do	Weight (KGS)
50	40	165	125	95	16	2	4-M16	136	375	180	7
65	40	185	145	110	16	2	4-M16	151	420	180	8
80	50	200	160	127	17	2	8-M16	170	450	200	11
100	50	220	180	148	17	2	8-M16	190	512	200	12
125	50	250	210	174	17	2	8-M16	212	570	220	15
150	60	285	240	199	21	2	8-M20	230	665	250	21
200	60	340	295	250	21	2	8-M20	286	825	300	29
250	70	395	350	308	24	2	12-M20	338	1000	350	46
300	70	445	400	360	24	2	12-M20	388	1155	350	66
350	96	505	460	416	33	2	16-M20	460	1310	400	92
400	100	565	515	466	35	2	16-M24	520	1475	500	125
