WCB Body Material Angle Globe Valve Pressure 150LB - 1500LB For Marine Purposes

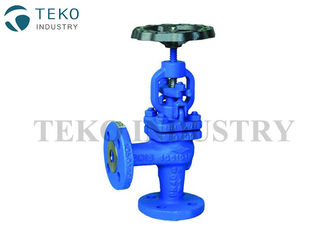

Large Image : WCB Body Material Angle Globe Valve Pressure 150LB - 1500LB For Marine Purposes

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J44W

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

End Connection:	Flange	Design:	API 602
Body Material:	WCB	Structure:	Angle Type
Pressure:	150LB-1500Lb	Face To Face:	ASME B 16.34
High Light:	angle globe valve , bolted bonnet globe valve

DIN 3356 Handwheel WCB Material Angley Type BS1873 Globe Valve For Marine Purposes

Quick Detail

Design standard: DIN 3356.
Body material: WCB.
Nominal diameter: DN200 (8 Inch).
Pressure: PN40.
End connection: RF.
Face to face: DIN 3202-F32.
Working temperature: -29℃~+427℃.
Test and inspection: EN 12266-1/2.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
Features: The valve can make the medium flowing through the valve to change lowing direction, so generating a certain pressure loss. The valve entry has been designed as pipe-connection and flat bottom.

Products performance specification

Test Standard

Nominal Pressure (Mpa)	Shell Test(Mpa)	Sealing Test(Mpa)	Suitable Temp(oC)	Suitable Medium
1.6	2.4	1.76	-110~600 oC	Water Oil & Gas
2.5	3.75	2.75
4.0	6.0	4.4
6.4	9.6	7.04

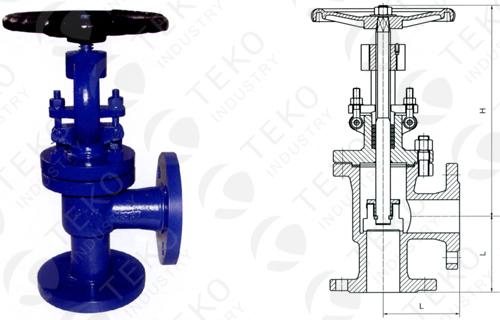

Dimension

WCB Body Material Angle Globe Valve Pressure 150LB - 1500LB For Marine Purposes 0

Pressure (Mpa)	PN 1.6 Mpa
Size	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	90	95	100	105	115	250	270	280	330	360	390	460	530	630	690	750
H	246	260	276	285	300	305	354	402	437	496	541	699	815	914	1189	1350
W	120	140	160	160	180	200	200	250	250	300	350	400	450	500	550	600
Weight(kg)	6	7.5	8	9	14	22	27	38	55	82	105	220	450	660	810	1100
