CF8 CF8M Stainless Steel BS 1873 Globe Valve Multipurpose For Regulating Pipeline Flow

Large Image : CF8 CF8M Stainless Steel BS 1873 Globe Valve Multipurpose For Regulating Pipeline Flow

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J41W

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Application:	Water, Gas, Oil Etc	Design:	BS 1873
Standar Or Nonstandard:	Standard	Body Material:	Stainless Steel
Operation:	Manual, Bevel Gear	Face To Face:	ASME B 16.34
High Light:	angle globe valve , bolted bonnet globe valve

Manual Operation Stainless Steel CF8 CF8M BS1873 Globe Valve Stop Valve

Globe Valve

A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.

Features:

Various Operation Options
OS & Y Design
Flange, RTJ, BW and other connection for options
Plug type disc
Live load packing to ensure the good sealing.
Bolted bonnet as standard. Pressure seal and weld bonnet for high pressure service.
Material: WCB, CF8, CF8M etc

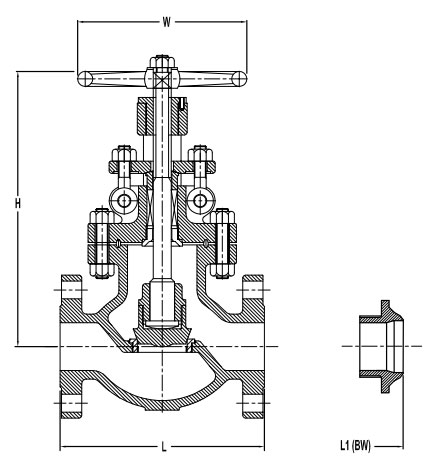

Dimension:

CF8 CF8M Stainless Steel BS 1873 Globe Valve Multipurpose For Regulating Pipeline Flow 0

150Lb

Sizes	L / L1	H (Open)	W
2"	8 (203)	13-3/8 (340)	8-7/8 (225)
2-1/2"	8-1/2 (216)	14-1/2 (368)	8-7/8 (225)
3"	9-1/2 (241)	16-1/2 (419)	11-7/8 (302)
4"	11-1/2 (292)	17-3/8 (441)	12-3/4 (325)
5"	14 (356)	24 (610)	12-3/4 (325)
6"	16 (406)	24 (610)	17-3/4 (451)
8"	19-1/2 (495)	26-3/4 (679)	21-5/8 (549)
10"	24-1/2 (622)	30 (762)	30 (762)
12"	27-1/2 (699)	33-7/8 (860)	30 (762)
14"	31 (787)	56 (1422)	31-1/2 (800)
16"	36 (914)	64 (1626)	35-1/2 (902)
GEAR OPERATOR RECOMMENDED FOR SIZE 10" AND ABOVE

300Lb

Sizes	L / L1	H (Open)	W
2"	10-1/2 (267)	13-3/8 (340)	9 (229)
2-1/2"	11-1/2 (292)	15-3/8 (390)	9 (229)
3"	12-1/2 (318)	16-1/2 (419)	13 (330)
4"	14 (356)	19-3/8 (492)	14 (356)
5"	15-3/4 (400)	21-1/2 (546)	15-3/4 (400)
6"	17-1/2 (445)	24-3/8 (619)	17-3/4 (451)
8"	22 (559)	31-1/4 (794)	22 (559)
10"	24-1/2 (622)	45 (1143)	34 (864)
12"	28 (711)	49 (1245)	34 (864)
GEAR OPERATOR RECOMMENDED FOR SIZE 8" AND ABOVE
