Stainless Steel Wafer Check Valve Vertical And Horizontal Installation Between Flanges

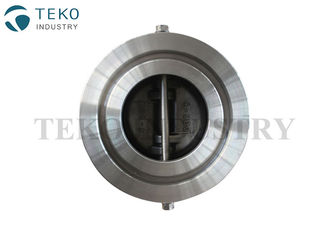

Large Image : Stainless Steel Wafer Check Valve Vertical And Horizontal Installation Between Flanges

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	H76X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Workign Pressure:	150LB-900Lb	Body Material:	WCB, CF8, CF8M Etc
Seal Material:	Stellited Or Resilient Seated	Structure:	Dual Plate Check Valve
Design Standard:	API 594	Installation:	Vertical Or Horizontal
High Light:	wafer type check valve , single disc wafer check valve

Stainless Steel Body Vertical And Horizontal Installation Wafer Check Valve Between Flanges

Our Wafer Pattern Dual Plate Check Valve offers excellent sealing capabilities for both high and low pressures; general purpose, industrial and HVAC applications include water, heating, air-conditioning plants and compressed air systems. An economical, space saving spring loaded dual plate valve with Stainless Steel body and Viton seal. Installed either vertically (upwards only) or horizontally.

Key features:

Available in sizes: 2" to 24"
Temperature range: -10°C to 120°C
Pressure rating: PN16
Low cracking pressure
Space saving design
Both Horizontal and Vertical(Upsream only) installation are workable.

Cracking Pressure (psi)

Cracking Pressure (psi)
Valve Size	Installation Orientation
	Horizontal Pipeline	Vertical Pipeline
	Valve plates open sideways	Valve plage open upwards
2" to 14"	0.15	0.30
16"to 24"	0.15	0.45
30" to 48"	0.15	0.60
