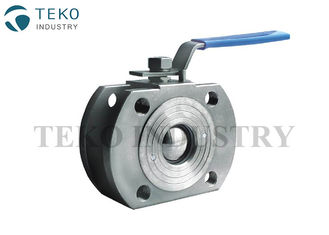

Wafer Short Pattern SS Ball Valve Flange Type WCB Material With Space Saving Structure

Large Image : Wafer Short Pattern SS Ball Valve Flange Type WCB Material With Space Saving Structure

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q71F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Lever Or Pneumatic	Body Material:	WCB, CF8M, CF8, CF3, CF3M
Bore:	Standard Bore	Seat Material:	RPTFE, PTFE
Working Temperature:	-25~-425℃	End Connection:	Wafer
High Light:	ss ball valve flange type , v port ball valve

Wafer Short Pattern Stainless Steel Wafer Ball Valves With Space Saving Structure

Stainless steel ASTM A351
CF8M, flanged ANSI 150 ball valve.
Full port, sizes 1/2'' to 8''.
Temperature to180 degree.
Blow out proof stem, adjustable stem packing.
PTFE seats, packing and thrust washer.
Space saving design. - 100% tested.

Material List

No.	PART NAME	MATERIAL
1	BODY	AISI 316 - CF8M
2	END CONNECTION	AISI 316
3	BALL	AISI 316
4	BALL SEATS	P.T.F.E + 15% GLASS
5	RING	FKM (Viton)
6	THRUST WASHER	P.T.F.E
7	RING	FKM (Viton)
8	STEM SEAL	P.T.F.E
9	PACKING GLAND	STEEL
10	END STOP	AISI 430 (DN 10 - DN 50) STEEL (DN 65 - DN 200)
11	SPRING WASHER	STEEL
12	NUT	STEEL
13	STEM	AISI 316
14	HANDLE	STEEL
15	HANDLE DN 150-200	STEEL
16	SCREW	STEEL
17	SCREW	STEEL
18	BODY HANDLE DN150-200	CAST IRON

Dimensions

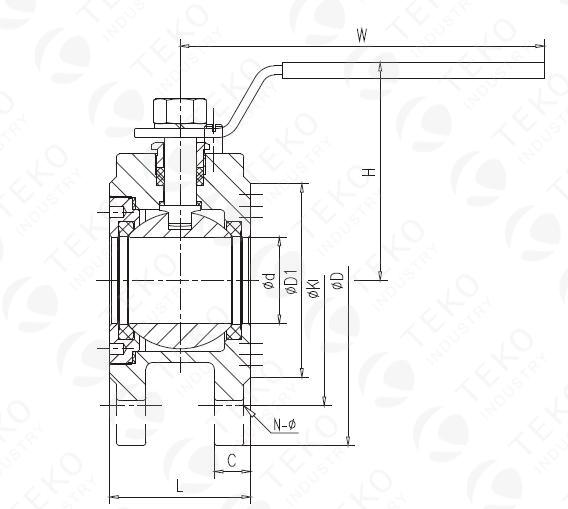

Wafer Short Pattern SS Ball Valve Flange Type WCB Material With Space Saving Structure 0

DN	d	L	D	K	D1	C	H	N-φ	W
15	15	35	95	65	46	10	65	4-M12	100
20	20	37	105	75	56	11	70	4-M12	110
25	25	42	115	85	65	12	80	4-M12	125
32	32	53	135	100	76	14	90	4-M16	150
40	38	62	145	110	85	16	96	4-M16	160
50	50	78	160	125	100	17	104	4-M16	180
65	58	90	180	145	118	18	110	4-M16	200
80	76	110	195	160	132	18	130	8-M16	250
100	90	134	215	180	156	19	145	8-M16	270
125	100	197	245	210	185	22	180	8-M18	320
150	125	231	480	240	207	24	200	8-M23	320
