Product Details:
Payment & Shipping Terms:
|
| Fluid: | Water, Oil Etc | Structure: | T Port Or L Port |
|---|---|---|---|
| Body Material: | CF8, WCB, CF8M | Bore: | Reduced Bore |
| Warranty: | 12 Month | Working Temperature: | -25~-180℃ |
| High Light: | ss ball valve flange type,flanged end ball valve |
||

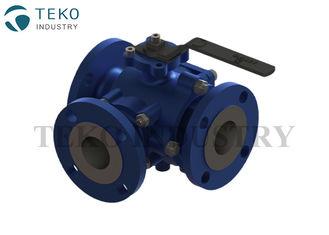

3 Way Pneumatic Actuated Flanged Ball Valve T Port For Chemical Plant
Product Details:
| Minimum Order Quantity | 1 Piece |
| Material | Stainless Steel , Casting |
| Pressure | Low Pressure , Medium Pressure , High Pressure , Vacuum |
| Temperature of Media | Low Temperature , Medium Temperature , High Temperature |
SPECIFICATION:
· Type: Three Piece T-port Ball Valve Flanged End
· Port: Full Bore
· Size: - 15 mm to 100mm NB
· Pressure Rating:
ASME #150 PN 20
ASME #300 PN 50
· Temperature Range: - 35 Deg C to 280 Deg C (Soft Seated)
· Body Materials: - Stainless Steel / Carbon Steel / Alloys
· Design Standard: - API 6D rev 23
· End Flanges: - ASME B16.5 2013
· Face to Face Dimension: - Non Standard , As per Mill Std
· Fire safe design: API-607 Rev 2010
· Testing: API 598 Rev 2009
TECHNICAL DETAILS of T-Port Configuration
TKEO side entry 3-Way ball valve offers diverting and mixing/selection flow patterns and often eliminates the need for two valves. The T-port configuration is available as a 2 piece or 3 piece design in two seat and four seat configuration thus is extremely versatile in various configurations and the full port design is easily automated as it comes in and is available with various seat materials for various pressure and temperature range.
Areas of application: Chemical/ Pharmaceutical/ Food /Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication
