Bi - Directional Full Bore Seal Slurry Pinch Valve Mining Machine For Outotec Filter - Press

Bi - Directional Full Bore Seal Slurry Pinch Valve Mining Machine For Outotec Filter - Press
Bi - Directional Full Bore Seal Slurry Pinch Valve Mining Machine For Outotec Filter - Press

Large Image :  Bi - Directional Full Bore Seal Slurry Pinch Valve Mining Machine For Outotec Filter - Press

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GJ41X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 30 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Detailed Product Description
Applications: Chemical, Acid Port Size: DN25 To DN1200
Drived By: Manual Body Material: Carbon Steel, Stainless Steel
Sleeve Pressure: Medium And Low Temperature Sleeve Type: Handmade Artwork
Sleeve Material: SBRT, NR, EPDM Etc
High Light:

Full Bore Seal Slurry Pinch Valve

,

Bi Directional Slurry Pinch Valve

,

Outotec Filter Press Slurry Pinch Valve

Bi-directional Full Bore Seal Pinch Valve Mining Machine For Outotec Filter-Press



Description

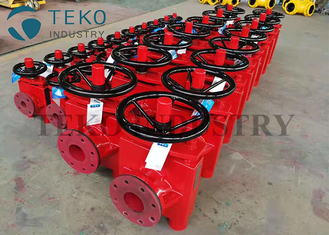

TEKO Manual Operation Pinch Valve, With abrasion-resistant sleeve, Carbon Steel fabricated body, with flanged drilled to ANSI B16.5, Full bore, bi-directional seal.



About Pinch Valve

Our manual slurry pinch valve is a control valve which uses a pinching effect to obstruct fluid flow.





About the positive opening tag



The positive opening tag are used to ensure, mechanically, that TEKO pinch valve sleeves return to a full round configuration. This is specially important for valves in low-pressure service (less than 2 psi) and essential in vacuum applications.



The positive opening tags are attached to the exterior of the sleeve and are secured by a nylon-reinforced “Belly Band” around the outside of sleeve body. This achieves two major operational advantages. First, the pinch bar pulls on the tags does not stress the internal structure of the sleeves, and no interior damage can result and long lift span is maintained.



Secondly, as the “belly band” is pulled from the top and bottom, the sides are drawn toward the centerline of the valve. This mechanically assists the sleeve externally, in addition to the line pressure inside the sleeve, to return the sides of the sleeve to a completely round position. Thus structural stress on the sleeve is minimized and superior performance is enhanced.



Versatility:



Bi-directional flow
Suction or discharge service
Up to 48” ID
Minimum 3X length or more
Customer-tailored ends to suit your requirements
Isolation or throttling service
Actuation by pneumatic, hydraulic or manual hand wheel
Available with pneumatic or electropneumatic positioner
